Small Sample Adapter
Ultra-Low Adapter
DIN Adapter

Small Sample Adapter

The Small Sample Adapter (SSA), consisting of a cylindrical sample chamber and spindle, provides a defined system for accurate viscosity measurements of small sample volumes in the order of 2 to 16 ml.
  • Removable Sample Chamber:
    The design of the SSA allows the sample chamber to be easily changed and cleaned without disturbing the set-up of the viscometer or temperature bath. This means that successive measurements can be made under identical conditions.
  • Temperature Control:
    The sample chamber fits into a flow jacket so that precise temperature control can be achieved when a Brookfield circulating temperature bath is used. The stirring action of the rotating spindle, plus the small sample volume helps to keep the temperature gradient across the sample to a minimum. Direct readout of sample temperature is provided using sample chambers with embedded RTD sensors connected to the DV-I+ (w/temperature option), Programmable DV-II+, or the DV-III+. Working temperature range for the SSA is from -15oC to 100oC.
  • Cylindrical Geometry
    The Small Sample Adapter's rheoligically correct cylindrical geometry provides extremely accurate viscosity measurements and shear rate determinations.

The Small Sample Adapter is supplied with one spindle (others available) and sample chamber, flow jacket, mounting bracket, and all necessary hardware. Optional chamber with embedded RTD probe and DIN spindle geometries available.

Back to Top

Small Sample Adapter
VISCOSITY RANGE - Centipoise (mPa·s)
SHEAR RATE**
SAMPLE VOLUME (mL)
LV SERIES VISCOMETERS & RHEOMETERS

LVT
LVDV-E & LVDV-I+
LVDV-II+
LVDV-III+


SSA 18/13R

SSA 31/13R

SSA 34/13R

SSA 16/8

SSA 25/13

5-10M

50-100M

100-200M

200-400M

800-1.6MM
3-10M

30-100M

60-200M

120-400M

800-1.6M
1.5-30M

15-300M

30-600M

60-1.2MM

240-4.8MM
1.2-30M

12-30M

24-600M

48-1.2MM

192-4.8MM
1.32N

0.34N

0.28N

0.29N

0.22

8.0

10.0

10.0

4.2

16.0

RV SERIES VISCOMETERS & RHEOMETERS

RVT
RVDV-E & RVDV-I+
RVDV-II+*
RVDV-III+


SSA 21/13R

SSA 27/13R

SSA 15/7R

SSA 28/13R

SSA 29/13R

SSA 14/6R

50-100M

250-500M

500-1MM

500-1MM

1M-2MM

1.25M-5MM

50-170M

250-830M

500-1.7MM

500-1.7MM

1M-3.3MM

1.25-4.2MM

25-500M

125-2.5MM

250-5MM

250-5MM

500-10MM

625-12.5MM

20-500M

100-2.5MM

200-5MM

200-5MM

400-10

500-12.5

0.93N

0.34N

0.48N

0.28N

0.25N

0.40

8.0

11.0

3.3

12.0

13.0

2.0

HA SERIES VISCOMETERS & RHEOMETERS

HAT
HADV-E & HADV-I+
HADV-II+*
HADV-III+


SSA 21/13R

SSA 27/13R

SSA 15/7R

SSA 28/13

SSA 29/13

SSA 14/6R
100-200M

500-1MM

1M-2MM

1M-2MM

2M-4MM

2.5-5MM
100-300M

500-1.7MM

1M-3.3MM

1M-3.3MM

2M-6.7MM

2.5-8.3MM
50-1MM

250-5MM

500-10MM

500-10MM

1M-20MM

1.25-25MM
40-1MM

200-5MM

400-10MM

400-10MM

800-20MM

1M-25MM
0.93N

0.34N

0.48N

0.28N

0.25N

0.40N
8.0

11.0

3.3

12.0

13.0

2.0
HB SERIES VISOMETERS & RHEOMETERS

HBT
HBDV-E & HBDV-I+
HBDV-II+*
HBDV-III+


SSA 21/13R

SSA 27/13R

SSA 15/7R

SSA 28/13R

SSA 29/13R

SSA 14/6R
400-800M

2M-4MM

4M-8MM

4M-8MM

8-16MM

10M-20MM
400-1.3MM

2M-6.7MM

4M-13.3MM

4M-13.3MM

8M-26.7MM

10M-33.3MM
200-4MM

1M-20MM

2M-40MM

2M-40MM

4M-80M

5-100MM
160-4MM

800-20MM

1.6M-40MM

1.6M-40MM

3.2-80MM

4M-100MM
0.93N

0.34N

0.48N

0.28N

0.25N

0.40N
8.0

11.0

3.3

12.0

13.0

2.0

* Maximum viscosity range shown at 0.1 rpm
** N = rpm

Ultra Low Adapter™

The Ultra Low Adapter™ (ULA) accessory is used with Brookfield Viscometers/Rheometers to make accurate and reproducible measurements on low viscosity materials. The adapter is usable with all standard Viscometers/Rheometers (excluding Cone/Plate models). It is commonly used with the LV series instrument (at 60 rpm, these models have full scale range of 1 - 10 cP with the ULA).

  • Cylindrical Geometry
    The ULA consists of a precision cylindrical spindle rotating inside an accurately machined tube. Its rheologically correct cylindrical geometry provides extremely accurate viscosity measurements and shear rate determinations. Also available is the ULA-DIN spindle which conforms to DIN 53019 specifications.
  • Measures Either Small or Large Samples
    The tube has a removable end cap. With the cap removed, the open ended tube can be used in a beaker or tank. With the cap in place, the closed tube holding a 16 ml sample (17 ml with the DIN spindle) can be immersed in a temperature bath or used with the ULA-40Y water jacket for precise temperature control. Working temperature range for the SSA is from -15oC to 100oC.
  • Easily Cleaned
    All immersed parts are stainless steel. The removable cap of low density polyethylene can be considered disposable for one-time use if required.
  • DIN Adapter Accessory
    Additional DIN spindles (conforming to DIN 53019) are available. Optional DIN spindles are available

Back to Top



Viscometer Model
UL Adapter™ Range, cP (mPa·s)
DIN Adapter Accessory cP (mPa™s)
LVT
LVDV-E & LVDV-I+
LVDV-II+
LVDV-III
1.0-2,000
1.0-2,000
1.0-2,000
1.0-2,000
1.9-37,898
1.2-37,898
1.0-50,000
1.0-50,000
RVT
RVDV-E & RVDV-I+
RVDV-II+
RVDV-III

6.4-2,000
6.4-2,000
3.0-2,000
3.0-2,000
12.2-50,000
12.2-50,000
5.0-50,000
5.0-50,000
HAT
HADV-E & HADV-I+
HADV-II+
HADV-III

12.8-2,000
12.8-2,000
6.0-2,000
6.0-2,000
24.4-50,000
24.4-50,000
10.0-50,000
10.0-50,000
HBT
HBDV-E & HBDV-I+
HBDV-II+
HBDV-III

51.2-2,000
51.2-2,000
24.0-2,000
24.0-2,000
97.6-50,000
97.6-50,000
40.0-50,000
40.0-50,000


DIN Adapter Accessory

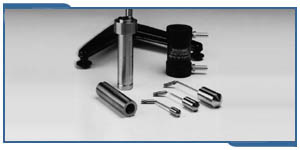

The DIN Adapter Accessory (DAA) is a cylindrical spindle geometry that conforms to the DIN 53019 specification. Three spindles and three chambers are provided. The DAA can be attached to any standard Brookfield Laboratory Viscometer/Rheometer.

Model
Viscosity Range (cP)
Spindle 85
Minimum - Maximum

Spindle 86
Minimum - Maximum

Spindle 87
Minimum - Maximum

LVT
1.9     3812
5.7     10,000
18.9     37,898
LVDV-I+/II+
1.2     3812
3.4     10,000
11.3     37,898
LVDV-III+
1.0     3812
1.4     10,000
4.5     50,000
RVT
12.2     5000
36.5     10,000
121.3     50,000
RVDV-I+/II+
12.2     5000
36.5     10,000
121.3     50,000
RVDV-III+
5.0      5000
14.6     10,000
48.5     50,000
HAT
24.4     5000
73.0     10,000
242.6     50,000
HADV-I+/II+
24.4     5000
73.0     10,000
242.6     50,000
HADV-III+
10.0     5000
29.2     10,000
97.0     50,000
HBT
97.6     5000
292.0     10,000
970.4     50,000
HBDV-I+/II+
97.6     5000
292.0     10,000
970.4     50,000
HBDV-III+
40.0     5000
116.8     10,000
388.2     50,000




SMC
1.22
3.65
12.13
SRC
1.29
1.29
1.29
Sample Volume (ml)
17.0
6.5
2.0
